Anhui Linghong Hardware Technology Co., Ltd. is China Custom Hex Head Roofing Screws With Drill Point Manufacturers and Hex Head Self Drilling Screws Factory, founded in 2017, covering an area of 30 mu with 12,600 square meters of standardized workshops and office buildings. Formerly known as Shanghai Linghong Fasteners Co., Ltd., the company has inherited its core management and production backbone team, and follows the mature operation system formed through 16 years of steady development of Shanghai Linghong. We offer Hex Head Self Drilling Screws for sale.
The company is equipped with more than 80 sets of production equipment, with a stable monthly capacity of approximately 500 tons. It specializes in the production of a full range of screws, including wood screws, chipboard screws, drywall screws, self-drilling screws, self-tapping screws, plasterboard screws, wallboard screws, corrugated screws, and other products. The company has a professional-quality management team and is equipped with precision testing instruments, including metallographic polishing machines and Rockwell hardness testers. Through strict control over first-piece inspection, in-process inspection, and the whole ex-factory process, it ensures the qualified quality of each batch of products with strong quality inspection capabilities. Meanwhile, the company has established a complete packaging system and an experienced management team, adopting a production model of "intelligent and mechanized production as the mainstay, supplemented by manual work". Adhering to excellent quality and a good reputation, the company provides customers with cost-effective, high-quality products.
With over 20 years of deep engagement in the fastener industry, Anhui Linghong Hardware Technology Co., Ltd. upholds the business philosophy of "Quality First, Integrity-Based", and is a comprehensive enterprise integrating design, development, production, and sales. Relying on over 20 years of accumulated production management experience and foreign trade export strength, the company has passed ISO 9001 Quality Management System, ISO 14001 Environmental Management System, and ISO 45001 Occupational Health and Safety Management System certifications, and established mature overseas sales channels. At present, the company exports 40 to 50 containers to Australia and about 10 containers to Europe and Japan every month, with annual sales exceeding 200 million RMB. The company sincerely welcomes customers at home and abroad to contact us for business negotiations and win-win cooperation!
A 4.2 mm self-drilling screw that cuts a clean hole through a 2 mm steel bracket will spin in place on a 0.8 mm cladding panel, and the same screw that holds a dry indoor ceiling together can rust to the surface within a season on a coastal roof. Neither failure is a manufacturi...
READ MOREA technician presses the point of a pan-head screw against a 1.5 mm galvanised bracket, leans into the driver, and squeezes the trigger. Two seconds later the joint is tight. No nut, no weld and no pre-cut thread were involved: the screw created its own thread inside the steel a...
READ MOREA production manager once asked us to replace a bugle-head wood screw with a countersunk screw because the drawing said "flat head." The first trial run failed: the flat-head screws sat proud, split several panels, and slowed the line until the pilot hole was changed. That one h...
READ MOREHigh-strength fasteners that drill, tap, and fasten in one operation. Designed for heavy-duty metal-to-metal and metal-to-wood connections in industrial construction, roofing, and structural steel applications.
Anhui Linghong Hardware Technology Co., Ltd. is a China-based Hex Head Self-Drilling Screws manufacturer and supplier with over 20 years of fastener industry experience. We operate a 12,600 m² factory equipped with more than 80 production lines, achieving a stable monthly output of approximately 500 tons. Our hex head self-drilling screws are produced under ISO 9001, ISO 14001, and ISO 45001 certified management systems, with rigorous in-house quality control from first-piece inspection to final ex-factory checks.
We supply standard and custom hex head self-drilling screws for global B2B projects, exporting 40–50 containers to Australia and about 10 containers to Europe and Japan each month. Our engineering team supports OEM/ODM requirements, ensuring that each batch meets your specific dimensional, material, and performance specifications.
Our hex head self-drilling screws are available in several configurations to match different installation methods and environmental conditions. The table below summarizes the main types we manufacture and their typical uses.
| Type | Head Style | Typical Applications |
|---|---|---|

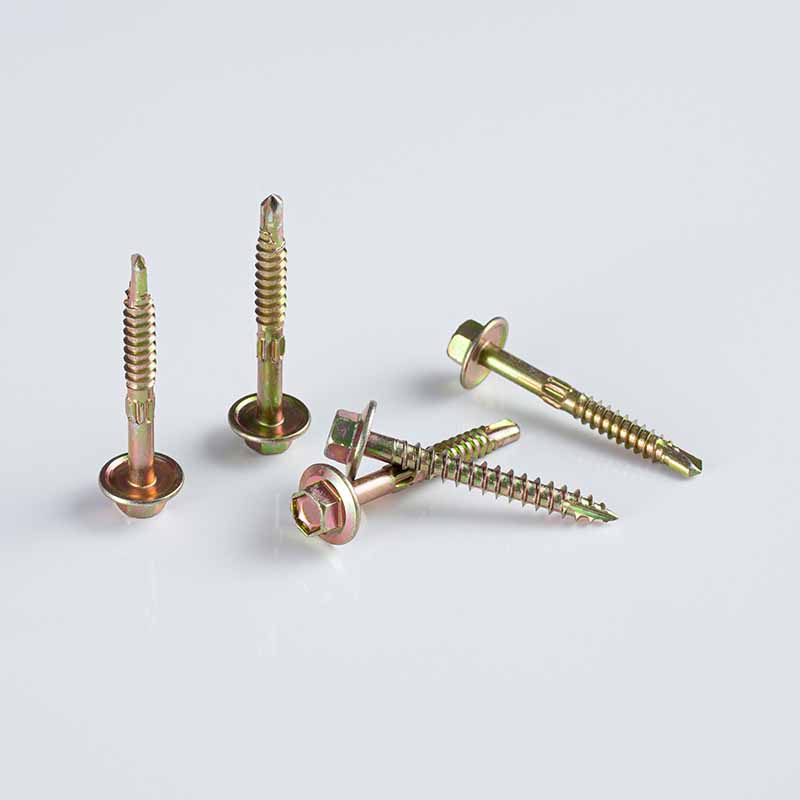

| Standard Hex Head | Hexagonal, with or without flange | Steel framing, metal roofing, general metal fastening |

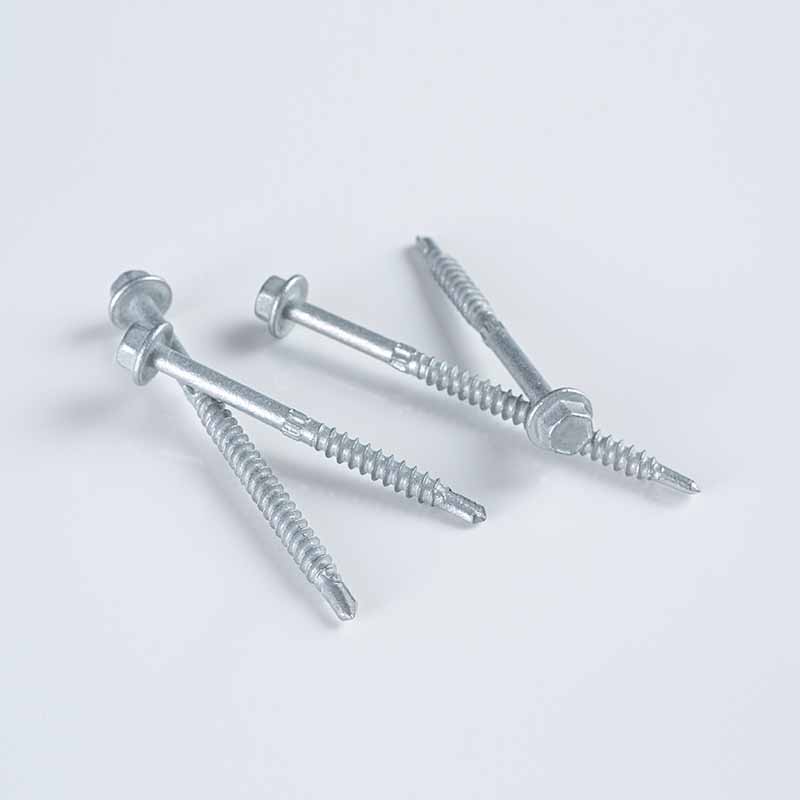

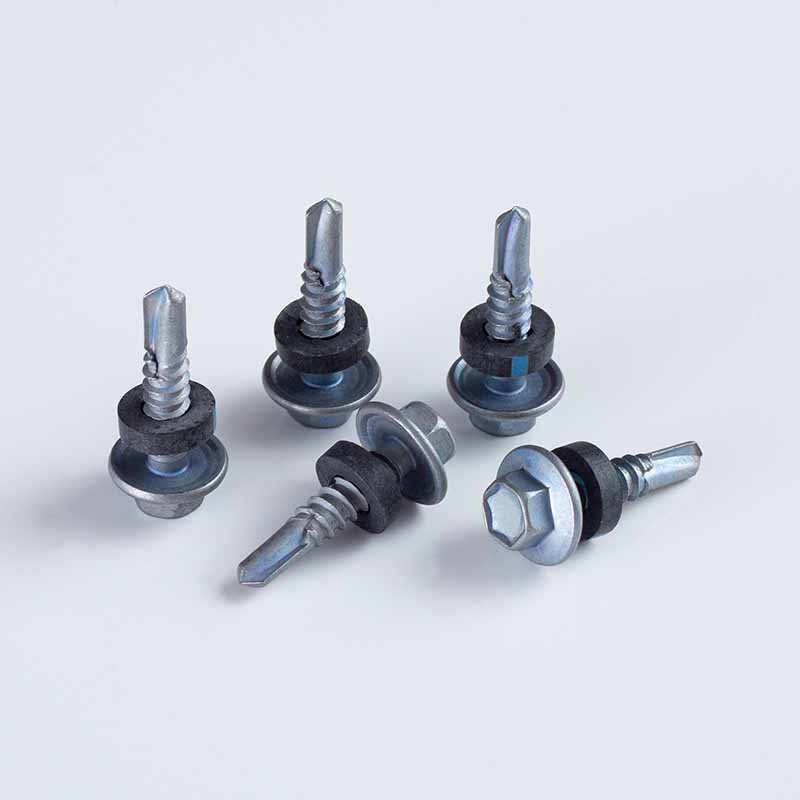

| Hex Flange Head | Hex with integrated flange | Thin steel plates, where load distribution is critical |

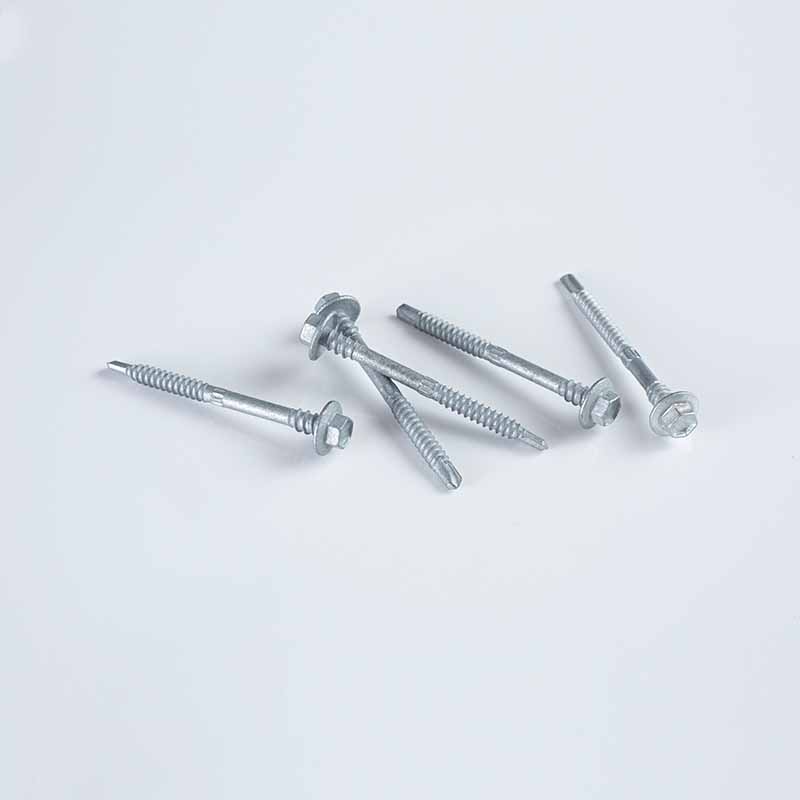

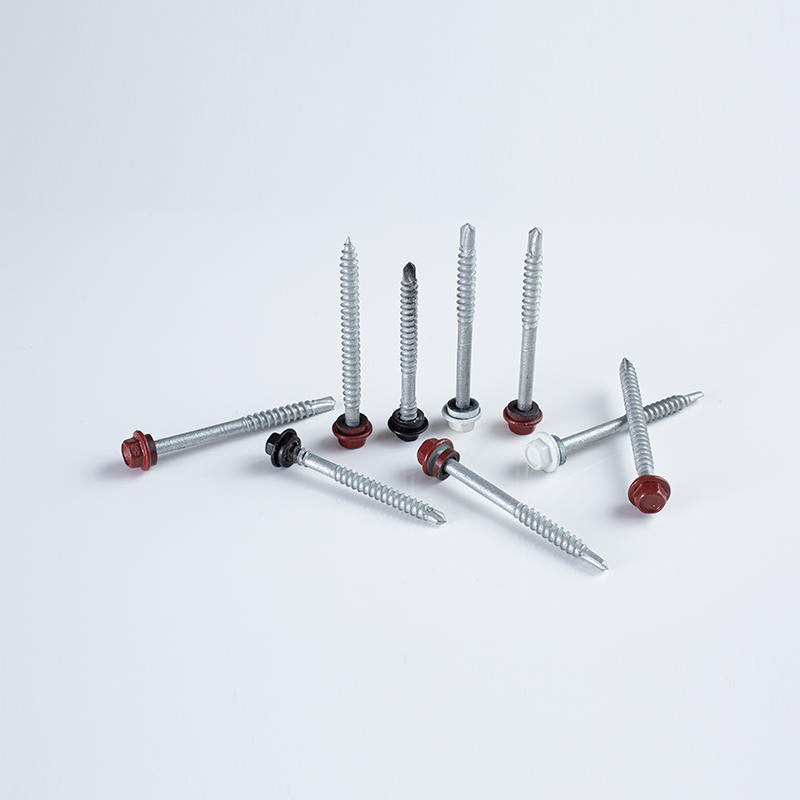

| Hex with Washer | Hex head with bonded or EPDM washer | Roofing and cladding where waterproofing is required |

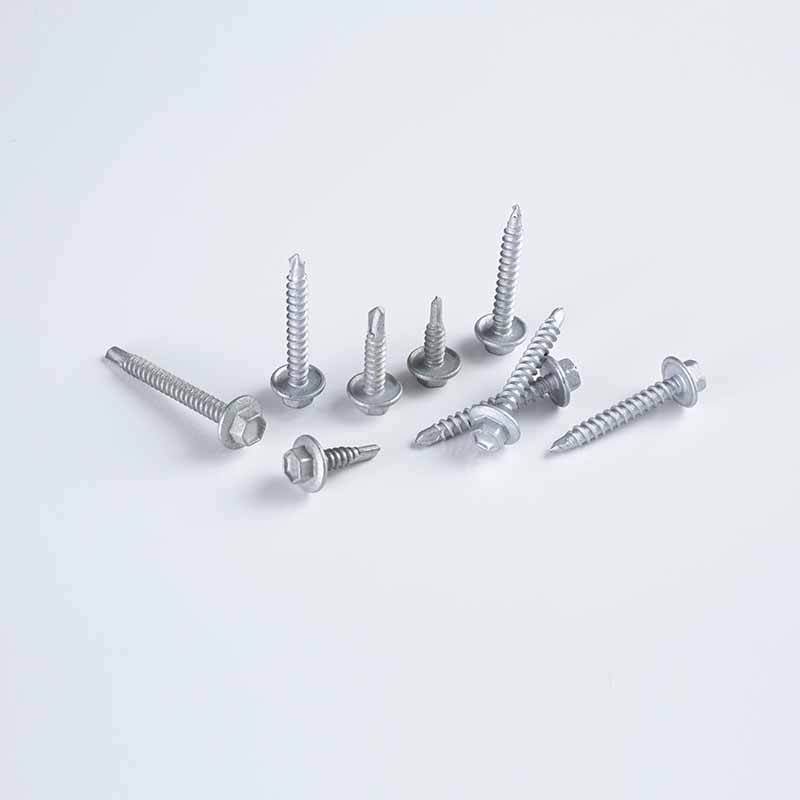

| Reduced-Tip Hex | Hex head with reduced drill point | Australian Type 3 applications, thicker steel sections |

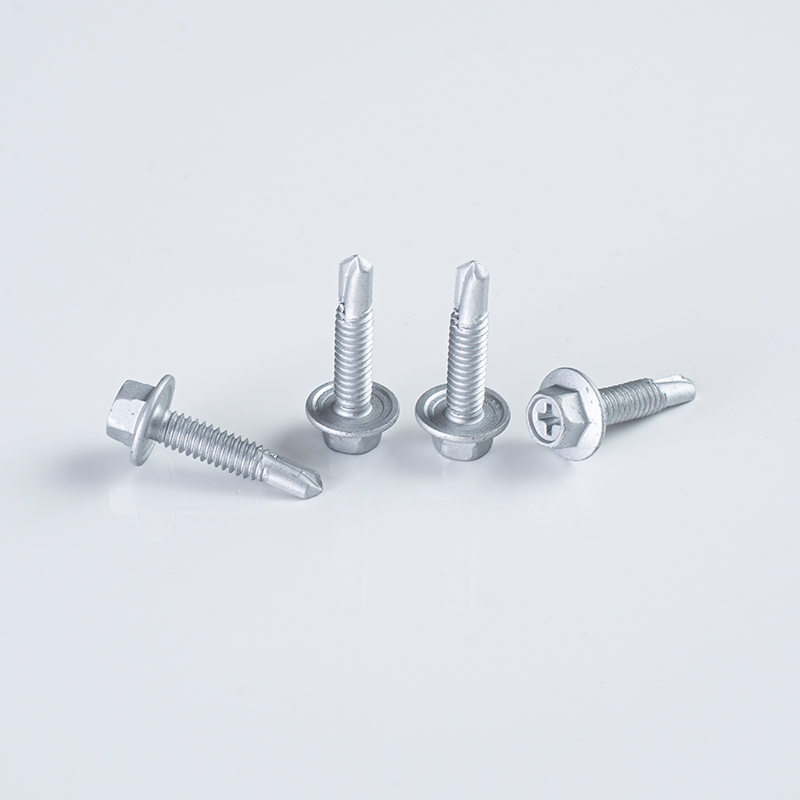

| Cross Recess Hex | Hex head with cross recess drive | When both hex and Phillips drivers are needed |

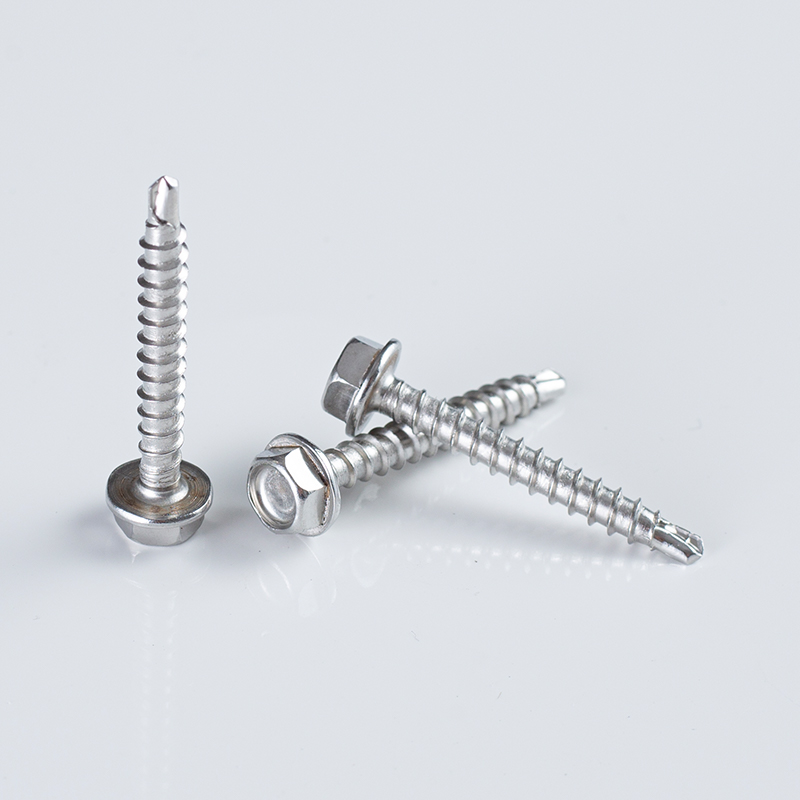

We also produce hex head self-drilling screws in stainless steel (SS304, SS316, 410) for coastal or corrosive environments, and in carbon steel with various coatings (zinc, Ruspert, painted) for indoor and outdoor use. Our range includes sizes from #10 to #14 and lengths from 16 mm to 75 mm, with custom dimensions available on request.
Each hex head self-drilling screw is engineered to meet the demands of your specific joint. We consider the thickness and hardness of the materials to be fastened, the required pull-out and shear strength, and the environmental exposure. Our drill point geometry is designed to penetrate steel up to 12 mm thick without pre-drilling, while the thread form ensures secure engagement and vibration resistance.
We offer several configuration options to match your installation tools and performance needs:
Our quality management team uses precision instruments, including metallographic polishing machines and Rockwell hardness testers, to verify hardness, case depth, and coating integrity. We perform first-piece inspection, in-process patrol inspection, and final random sampling before packing. Each batch is traceable, and we can provide material certificates and test reports upon request.
We also conduct installation tests to confirm that the drill point performs as expected on representative material samples. This ensures that your production line or construction crew will not face unexpected delays due to fastener failure.
We package hex head self-drilling screws in boxes, cartons, or bulk packs according to your specifications. Our export experience ensures that packaging is robust for sea freight, and we can provide palletization and labeling as required. We maintain a stable monthly capacity of 500 tons, so we can handle both large-volume orders and urgent restocks.
Our sales and engineering teams work closely with you from sample approval to final delivery. We provide technical documentation, including dimensional drawings and installation guidelines, to support your project planning.
To prepare an accurate quotation and production plan, please provide the following details:
Q: Can you produce hex head self-drilling screws with custom lengths and coatings?
A: Yes, we offer custom manufacturing. Provide your required dimensions, material, and finish, and we will produce samples for your approval before mass production.
Q: What is the typical lead time for a container order?
A: Lead time depends on the quantity and customization level. For standard sizes, we can often ship within 2–3 weeks after order confirmation. Custom orders may require additional time for tooling and sampling.
Q: Do you provide test reports or certificates for each batch?
A: Yes, we can provide material certificates, hardness test reports, and coating thickness reports. Our quality system is ISO 9001 certified, and we follow strict inspection procedures.
Q: Are your hex head self-drilling screws suitable for outdoor roofing applications?
A: Absolutely. We offer screws with EPDM washers and corrosion-resistant coatings (e.g., Ruspert, painted heads) specifically designed for roofing and cladding. For coastal areas, we recommend stainless steel grades.
Q: Can you match a specific standard like Australian Type 3?
A: Yes, we produce reduced-tip hex head self-drilling screws that meet Australian Type 3 requirements. We have experience exporting to Australia and understand the relevant specifications.
Our portfolio also includes Products, Wood Screw, Carbon Steel Wood Screws for applications with different operating ranges, interfaces or integration requirements.
